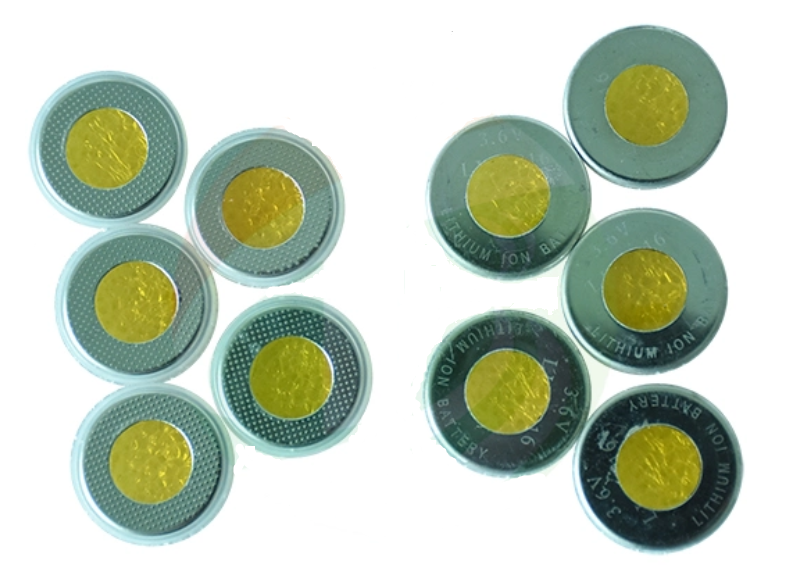

2016 Coin cell Case with with Two Side Kapton Window for In-situ X- Ray Analysis
• 5 set of CR2016 casing per package
• Kapton window for X-Ray beam penetration.
• PP (Polypropylene) sealing O-ring
CR-2016 coin cell cases with 10mm Kapton windows (5 set/pck). The window is designed for in-situ X-Ray analysis of battery material phase variations during charging and discharging.
| Specifications | |
| Dimensions (Dia x Height) | 20mm x 1.6mm |
| Kapton window diameter/ thickness | 10mm/0.18mm |
| Coating | The positive side of the casing is coated with aluminum |
| Al coating thickness | < 0.01mm |
| Weight | ~7 grams |
